• Thin-bezel auto-dimming rearview mirror with HomeLink® universal transceiver
• Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
• Power vertical rear window with defogger and privacy glass
• Acoustic laminated windshield
• Power windows with one-touch auto up/down and jam protection
• Front and rear LED maplights
• Illuminated center console storage bin and glove box
• Soft-touch instrument panel, center console and door surfaces
• Leather-wrapped shift knob
• Backup camera with projected path
• Drive Mode Select (DMS) switch and dial
• Rear-seat air vents
• Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
• Front 12V auxiliary power outlet
• Overhead console with rear window control, sunglasses storage and Safety Connect®
• Electronic locking fuel door
• Front and rear assist grips
• 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages
• SofTex®-trimmed seats; 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support
• Driver's-seat memory function
• Heated front seats
• Heated and ventilated front seats
• 60/40 split, folding rear seat with center armrest and cup holders
• Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger
• Leather-wrapped manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
• 9-speaker audio system

• Fuel System: D-4ST direct-injection and port-injection fuel system
• Ignition System: Conventional 12V starter
• HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
• HV Electric Motor: Electric motor power: 48 hp (36 kW)
• HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
• HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
• Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
• Exhaust System: Stainless steel exhaust system
• Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
• Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls
• Towing: Trailer-Sway Control (TSC)
• Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low range) and Automatic Limited-Slip Differential (Auto LSD)
• Drive Modes: Eco, Normal and Sport driving modes
• Drive Modes: TOW/HAUL driving modes
• Body/Frame: Fully boxed high-strength steel ladder frame
• Body/Frame: Hydraulic cab mounts
• Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
• Body/Frame: Active aero front spoiler
• Body/Frame: Active grille shutters
• Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
• Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
• Brakes: Electric Parking Brake (EPB)

• Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
• Front and Rear Parking Assist with Automatic Braking
• Eight total airbags, including driver and passenger side, knee and curtain airbags
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
• Child-protector rear door locks and power window lockout control
• Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
• Drive-Start Control (DSC)
• Hill Start Assist Control (HAC)
• Tire Pressure Monitor System (TPMS)
• Driver and front passenger active headrests

All-Weather Floor Liners ($199)

• Engineered to precisely fit your Tundra and made from durable
• weather-resistant material.
  • Liners feature channels to better hold moisture

Paint Protection Film (Hood, Fenders, Door Cups & Mirror Backs) ($439)

• Helps protect the paint finish from chips and scratches.
  • Kit includes paint protection film for hood
• fenders
• mirror backs and door cups
  • Designed for specific sections of the vehicle most prone to chipping

50 State Emissions ($0)

• 50 State Emissions

Spray-On Bedliner ($599)

• Get the spray-on bedliner that’s as tough and durable as your Tundra. Protect your bed from damage with this permanently bonded fixture.
  • New
• Toyota-exclusive softer material to keep items from sliding in the bed
  • Toyota quality standards assure uniform thickness and a consistent texture
  • Textured surface is designed to prevent cargo from sliding
  • No lost cargo space
• minimal added weight
  • Features a Tundra logo
  • Proprietary application method helps create a straight and crisp edge
  • Fully warranted; repairs completed quickly and easily at a Toyota dealership

Limited Power Package ($385)

• Limited Power Package

  • Qi-compatible wireless smartphone charging


  • 400W/120V rear-seat AC power supply


  • 400W/120V bed-mounted AC power supply


  • LED bed lights

Panoramic Roof ($1,350)

• Power tilt/slide panoramic roof with power sunshade

Tailgate Insert Badge - Black ($89)

• Tailgate inserts emphasize the Tundra stamp in the tailgate and are an easy way to customize the look of your truck. Individual letters strongly adhere into the stamped tailgate logo.
  •Attached with strong adhesive backing
  •Two colors available
• bright chrome or flat black

• ALL WEATHER FLOOR LINERS (TMS)

  PAINT PROTECTION FILM (TMS)

  50 STATE EMISSIONS

  TAILGATE INSERT - BLACK (TMS)

• Mileage
• Fuel Economy Est-Combined (MPG): 22 (Est)
• EPA Fuel Economy Est - City (MPG): 20 (Est)
• EPA Fuel Economy Est - Hwy (MPG): 24 (Est)
• Traction Battery
• Gross Traction Battery Capacity (kWh): 1.9
• Weight Information
• Base Curb Weight (lbs): 6010
• Gross Vehicle Weight Rating Cap (lbs): 7615
• Gross Combined Wt Rating (lbs): 17600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11170
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1117
• Maximum Trailering Capacity (lbs): 11170
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Size: P265/60HR20
• Rear Tire Size: P265/60HR20
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 20 X 8
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.2
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall (in): 233.6
• Width, Max w/o mirrors (in): 80.2
• Height, Overall (in): 78
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 65.6
• Cargo Box Width @ Top, Rear (in): 58.7
• Cargo Box Width @ Floor (in): 58.7
• Cargo Box Width @ Wheelhousings (in): 48.7
• Cargo Box (Area) Height (in): 20.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 65
• Front Hip Room (in): 62.6
• Second Head Room (in): 38.5
• Second Leg Room (in): 41.6
• Second Shoulder Room (in): 62.4
• Second Hip Room (in): 60.5
• Summary

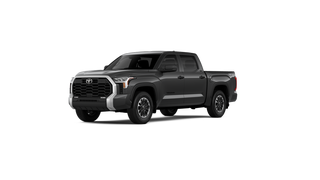

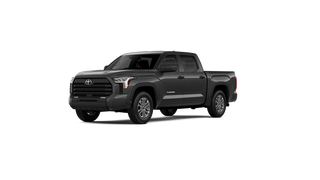

• Vehicle Name: Toyota Tundra 4WD
• Body Style: CrewMax
• Body Code: T
